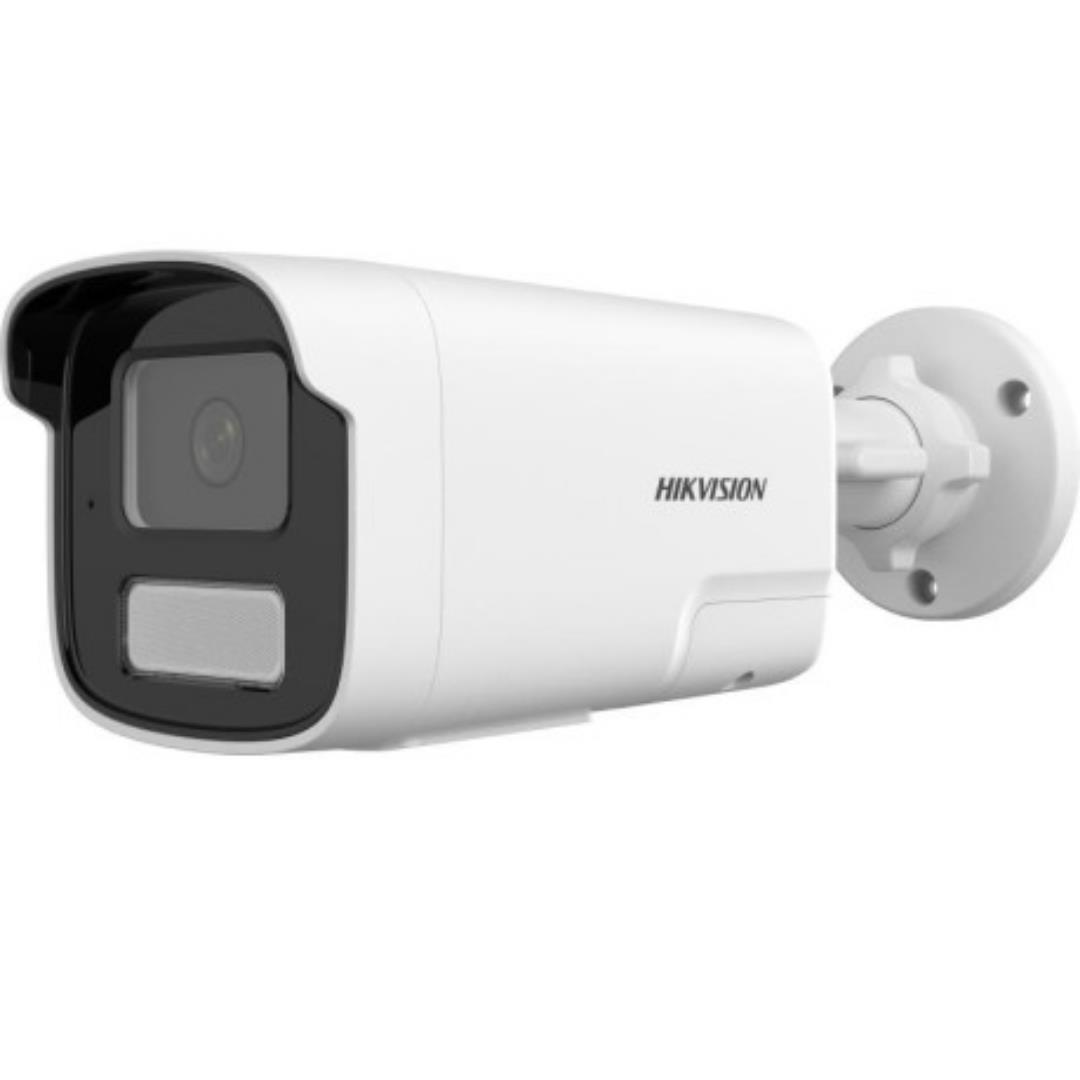

Hikvision Ds-2cd1083g2-LIUF/Sl 8mp 2.8mm Smart Hibrid Light Ip Bullet Kamera

Hikvision DS-2CD1083G2-LIUF/SL 8MP 2.8mm Smart Hybrid Light IP Bullet Kamera

• Genel Özellikler
• Çözünürlük: 8 MP
• Ses / Mikrofon: Ses ve Alarm Girişi
• Lens Tipi: 4 MM
• Görüş Mesafesi: IR-50 Mt
• Beyaz Işık LED Sayısı: IR LED + Tamamlayıcı Işık
• Kasa Tipi: Bullet
• Kamera
• Image Sensor: 1/2.7" Progressive Scan CMOS
• Maks. Çözünürlük: 3840 × 2160
• Min. Aydınlatma: Renkli: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
• Lens
• Lens Tipi: Fixed focal lens, 4 and 6 mm optional
• Focal Length & FOV: 4 mm, H: 90°, V: 49°, D: 108°; 6 mm, H: 56°, V: 30°, D: 65°
• Iris Tipi: Fixed
• Lens Mount: M12
• Aperture: F2.0
• DORI Mesafeleri
• 4 mm: Detect: 102 m, Observe: 40 m, Recognize: 20 m, Identify: 10 m
• 6 mm: Detect: 170 m, Observe: 67 m, Recognize: 34 m, Identify: 17 m
• Illuminator / Smart Light
• Supplement Light Range: Up to 50 m
• Smart Supplement Light: Yes
• Supplement Light Type: IR, White Light
• IR Wavelength: 850 nm
• Video
• Main Stream: 50 Hz: 12.5 fps (3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720); 60 Hz: 15 fps (same resolutions)
• Sub-Stream: 50 Hz: 12.5 fps (1280×720, 640×480, 640×360); 60 Hz: 15 fps (same resolutions)
• Video Compression: Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline, Main, High Profile
• Bit Rate Control: CBR, VBR
• ROI: 1 fixed region for main stream
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Audio
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-160 Kbps (MP2L2)/16-64 Kbps (AAC-LC)
• Audio Sampling Rate: 8 kHz / 16 kHz
• Audio Type: Mono sound
• Noise Filtering: Yes
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Network / Yazılım
• Web Browser: IE 10/11 (plug-in), Chrome 57+, Firefox 52+, Edge 89+
• Client: iVMS-4200, Hik-Connect
• Security: Password protection, watermark, MAC authentication, WSSE, HTTPS
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profile S/T/G), ISAPI, SDK
• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
• User/Host: Up to 32 users, 3 levels: administrator, operator, user
• Image / Video Enhancements
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• WDR: 120 dB
• SNR: ≥ 52 dB
• Image Settings: Rotate, saturation, brightness, contrast, sharpness, gain, white balance (adjustable)
• Privacy Mask: 4 programmable polygon masks
• Interface / Storage
• On-Board Storage: MicroSD/microSDHC/microSDXC up to 512 GB
• Built-in Microphone: Yes
• Built-in Speaker: Max 1.5 W, sound pressure 10 cm: 95 dB
• Ethernet: 1 RJ45 10/100 M self-adaptive port
• Reset Key: Yes
• Event
• Basic Event: Motion detection (support human/vehicle trigger), video tampering alarm, exception
• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, capture, audible warning, flashing light
• General
• Power: 12 VDC ±25%, 0.75 A, max 9 W, Ø5.5 mm coaxial plug, PoE: IEEE 802.3af Class 3, max 10.5 W
• Material: Metal & Plastic
• Dimension: 83.7 × 80.7 × 221.1 mm (3.3" × 3.2" × 8.7")
• Package Dimension: 260 × 125 × 125 mm (10.2" × 4.9" × 4.9")
• Weight: Approx. 410 g (0.9 lb), With Package: 669 g (1.5 lb)
• Storage Conditions: -30 °C to 60 °C, Humidity ≤ 95% non-condensing
• Startup/Operating Conditions: -30 °C to 60 °C, Humidity ≤ 95% non-condensing
• Language: English, Ukrainian
• General Function: Heartbeat, anti-banding, mirror, password protection/reset via email
• Flashing Light: Yes
• Approval / Protection
• IP67: IEC 60529-2013
• EMC: CE-EMC (EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021), RCM, IC
• Safety: UL 62368-1, CB IEC 62368-1, CE-LVD EN 62368-1, BIS IS 13252 (Part 1)
• Environment: CE-RoHS, WEEE, REACH
