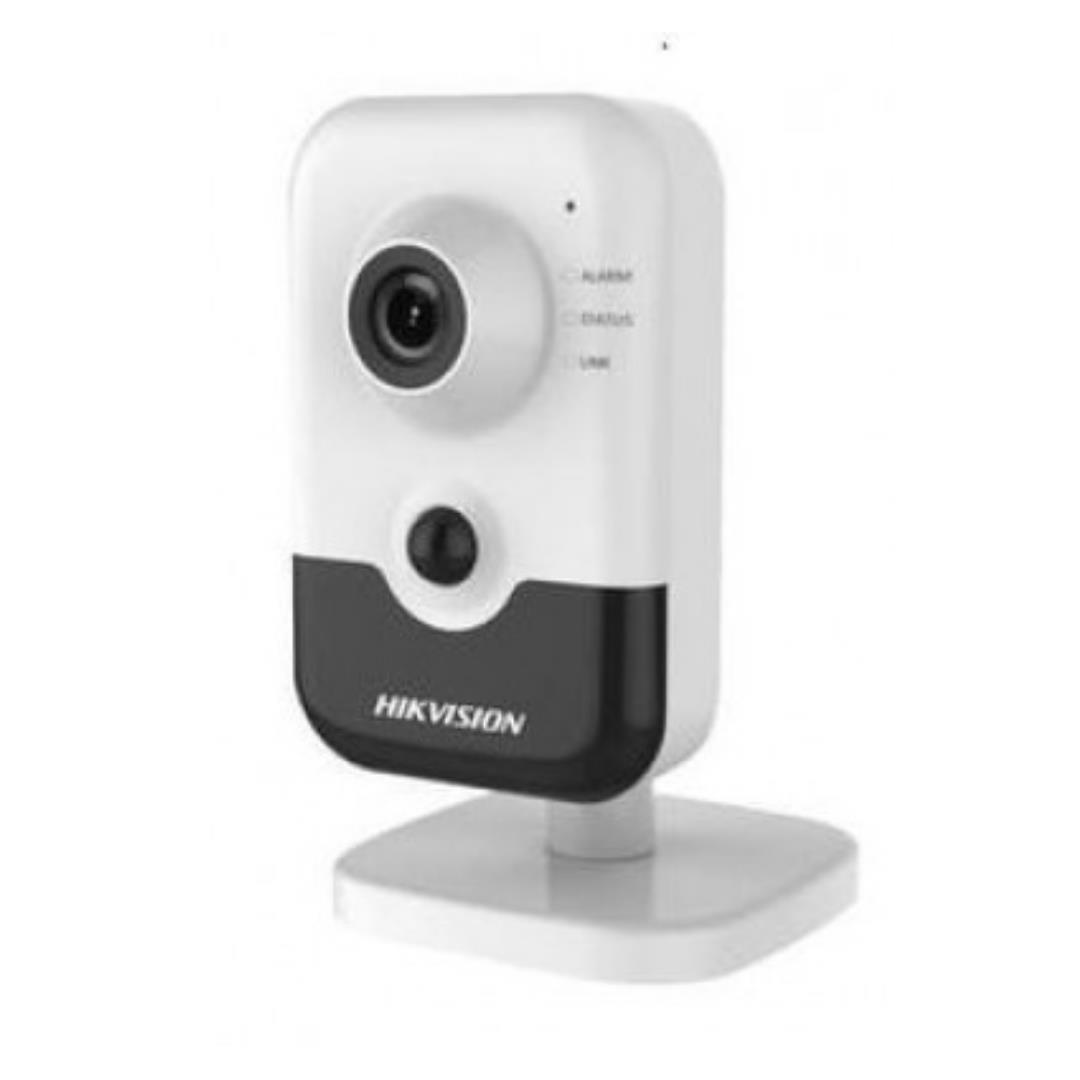

HIKVISION DS-2CD2421G0-IW 2MP 2.8MM SESLİ IP KÜP KAMERA (Wİ-Fİ)
Marka: Hıkvısıon Güvenlik Kamera SistemleriStok Kodu: 100 01 02964
Kdv Dahil Fiyat
$
₺
Stok: 20
Genel Özellikler Çözünürlük 2 MP Ses / Mikrofon Var Lens Tipi 2.8 MM Görüş Mesafesi 10 Mt Gece Görüşü Led Sayısı Ir Led Kasa Tipi Cube
Kamera Image Sensor 1/2.7" Progressive Scan CMOS Min. Illumination 2 mm: Color: 0.01 Lux @ (F2.25, AGC ON), B/W: 0 Lux with IR 2.8 mm and 4 mm: Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Max. Resolution 1920 × 1080 Shutter Time 1/3 s to 1/100, 000 s Day & Night IR cut filter Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° Lens Lens Type Fixed focal length, 2, 2.8, and 4 mm optional Focal Length & FOV 2 mm, horizontal FOV 137.2°, vertical FOV 80.1°, diagonal FOV 157.4° 2.8 mm, horizontal FOV 113.4°, vertical FOV 59.8°, diagonal FOV 135.6° 4 mm, horizontal FOV 91.5°, vertical FOV 46.1°, diagonal FOV 109.8° Iris Type Fixed Aperture 2 mm: F2.25 2.8 mm: F1.6 4 mm: F1.6 Lens Mount M12 DORI DORI 2 mm: D: 30.3 m, O: 12.0 m, R: 6.1 m, I: 3.0 m 2.8 mm: D: 37.3 m, O: 14.8 m, R: 7.5 m, I: 3.7 m 4 mm: D: 52.9 m, O: 21.0 m, R: 10.6 m, I: 5.3 m Illuminator Supplement Light Range Up to 10 m IR Wavelength 850 nm Smart Supplement Light Yes Video Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Video Bit Rate 32 Kbps to 8 Mbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main Profile Bit Rate Control CBR/VBR Scalable Video Coding (SVC) Yes Region Of Interest (ROI) 1 fixed region for main stream Audio Environment Noise Filtering Yes Audio Sampling Rate 8 kHz/16 kHz Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) Network Simultaneous Live View Up to 6 channels API Open Network Video Interface, ISAPI Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X(-W model does not support), QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS, SNMP, PPPoE User/Host Up to 32 users. 3 levels: administrator, operator and user Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Client iVMS-4200, Hik-Connect Web Browser Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ Wi-Fi Encryption Mode -IW: 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK Wi-Fi Protocol -IW: 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM Frequency Range -IW: 2.412 GHz - 2.472 GHz Channel Bandwidth -IW: 20/40 MHz Modulation -IW: 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM Transfer Rate -IW: 11b/g: 54 Mbps 11n: up to 150 Mbps Wireless Range -IW: Up to 50 m (The performance varies based on actual environment) Image Wide Dynamic Range (WDR) 120 dB Day/Night Switch Day, Night, Auto, Schedule Image Enhancement BLC, 3D DNR Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser. PIR PIR Angle Horizontal: 90°, vertical: 80° PIR Range Up to 8 m Interface Built-In Microphone Yes Built-In Speaker Power: 1 W. Max. sound pressure level: 10 cm: 91 dB. On-Board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB Reset Key Yes Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port Event Basic Event Motion detection, video tampering alarm, exception Smart Event Line crossing detection, intrusion detection Linkage Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning General Power -I: 12 VDC ± 25%, 0.49 A, max. 5.8 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 6.8 W -IW: 12 VDC ± 25%, 0.66 A, max. 7.9 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 8.9 W Language 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter Storage Conditions -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing) Startup And Operating Conditions -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing) Dimension 2 mm: 102.9 mm × 65.2 mm × 28.8 mm (4.1" × 2.6" × 1.1") 2.8 mm and 4 mm: 102.9 mm × 65.2 mm × 32.6 mm (4.1 × 2.6" × 1.3")" Package Dimension 150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9") Approx. 115 g (0.3 lb.) With Package Weight Approx. 330 g (0.7 lb.) Approval EMC FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014) RF -IW: FCC ID (FCC Part 15.247(BT or 2.4G)); CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)) Safety CB (IEC 62368-1: 2014+A11) CE-LVD (EN 62368-1: 2014/A11: 2017) Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
