Ürün Bilgileri

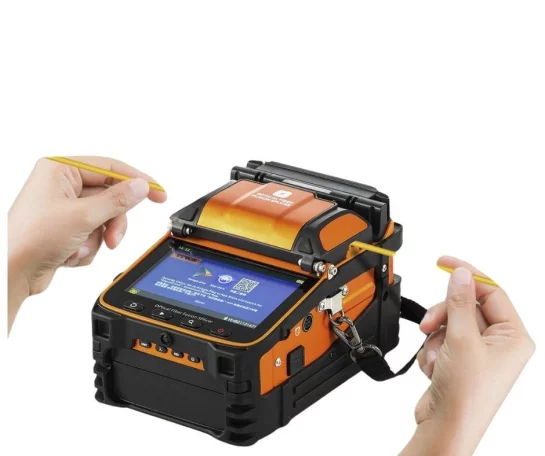

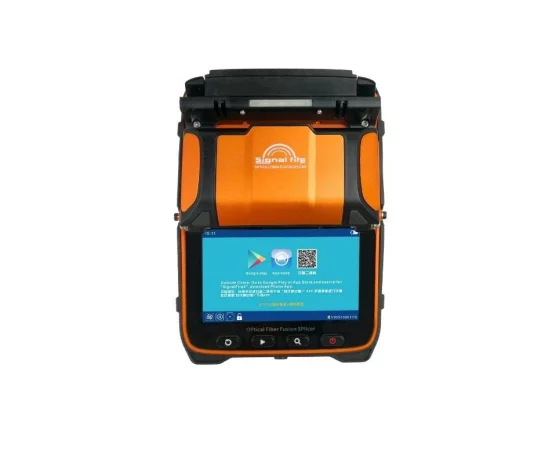

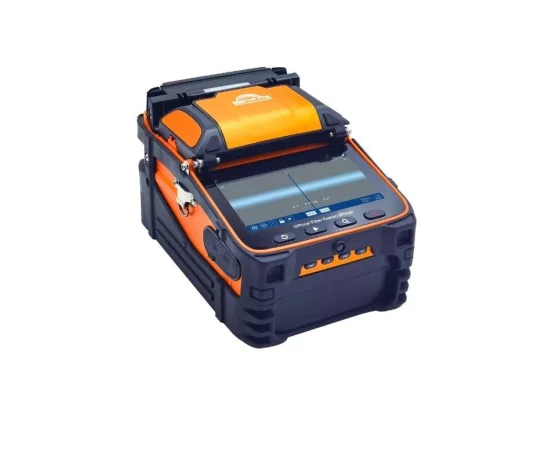

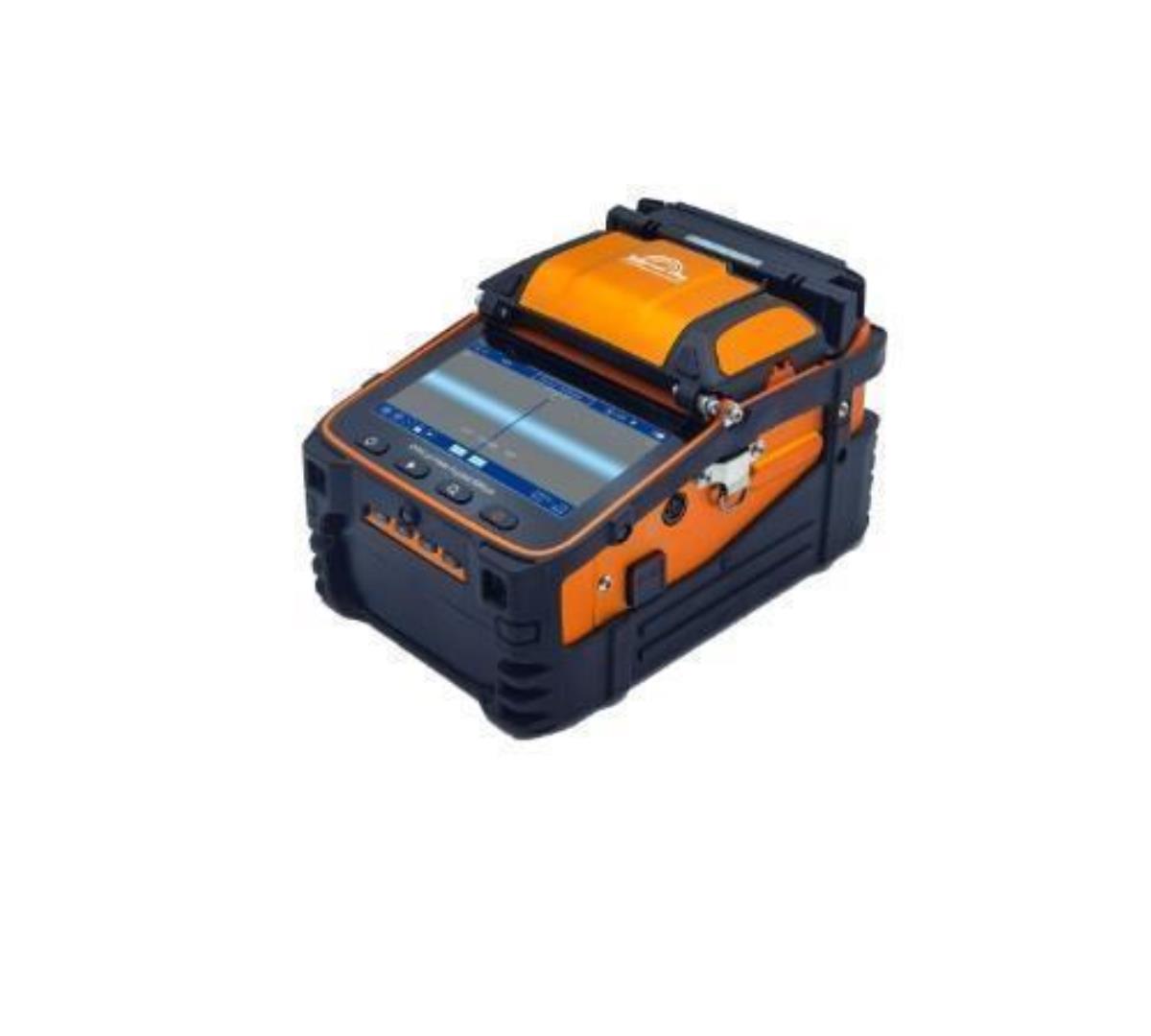

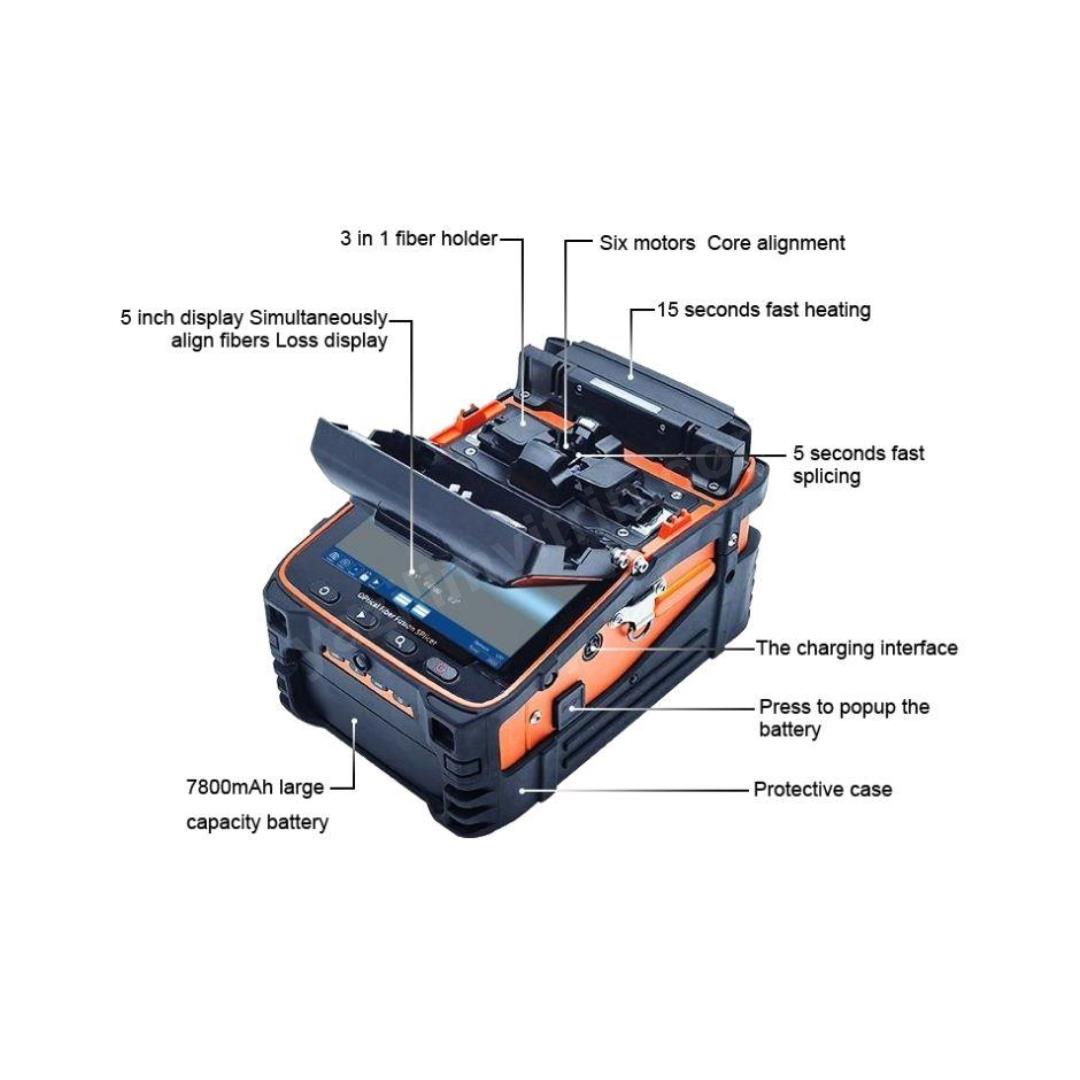

Single-mode fiber (SMF/G.652), BIF/G.657); Suitable for single mode, multi-mode, bare fiber, tail fiber, skinfiber, jumper, invisible fiber fusion; The cladding diameter 80-150 μm Splicing loss 0.02dB(SM)、0.01dB(MM)0.04dB(DS/NZDS) Splicing mode Automatic focusing core alignment, conventional/high precision welding Splicing way Automatic, semi-automatic Fiber holder Three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/barefiber, tail fiber,jumper, leather cable VFL The machine comes with: power: 15mW, 2Hz flashing and steady on mode OPM Wavelength: 850nm; 1300nm, 1310nm, 1490nm, 1550nm, 1625nm/Measurement range: -70~+6dBmAbsolute error: <0.3dB (-50dbm ~+3dBm range) Battery capacity 7800mAh large capacity lithium battery charging time ≤3.5; It can continuously weld and heat about 260cores Magnification 300 (X or Y), 150 (X or Y) Fiber diameter Coating diameter: 80-150μm/Coating diameter: 100-1000μm Cutting length Coating layer 250μm below: 8-16mm/coating layer 250-1000μm: 16mm Tr Ai-9, optik güce ve kırmızı ışık algılama fonksiyonuna sahip, altı motorlu, fiber çekirdek hizalamalı otomatik fiber kaynak makinesidir. Endüstriyel dört çekirdekli CPU, hızlı çalışma hızı, 5 saniye hızlı kaynak, 15 saniye hızlı ısıtma, 5 inç yüksek çözünürlüklü LCD ekran, 300 kat büyütme; Çalışma verimliliği sıradan kaynak makinesine göre %50 daha yüksektir. Büyük kapasiteli lityum pil, yaklaşık 260 çekirdeğin füzyonu ile ısıtılabilir, yüksek rakım, çöl, aşırı soğuk ve diğer zorlu ortam performansı hala olağanüstüdür.

Ürün Açıklaması

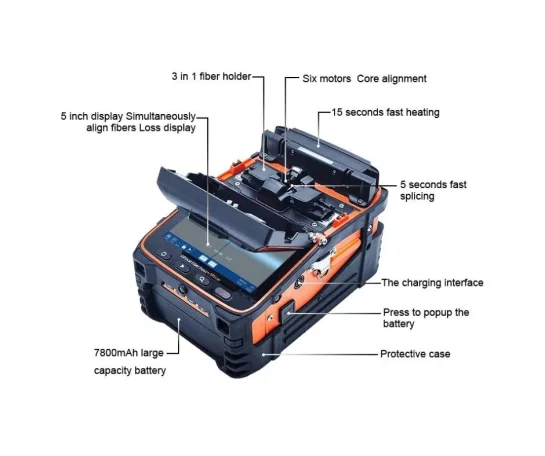

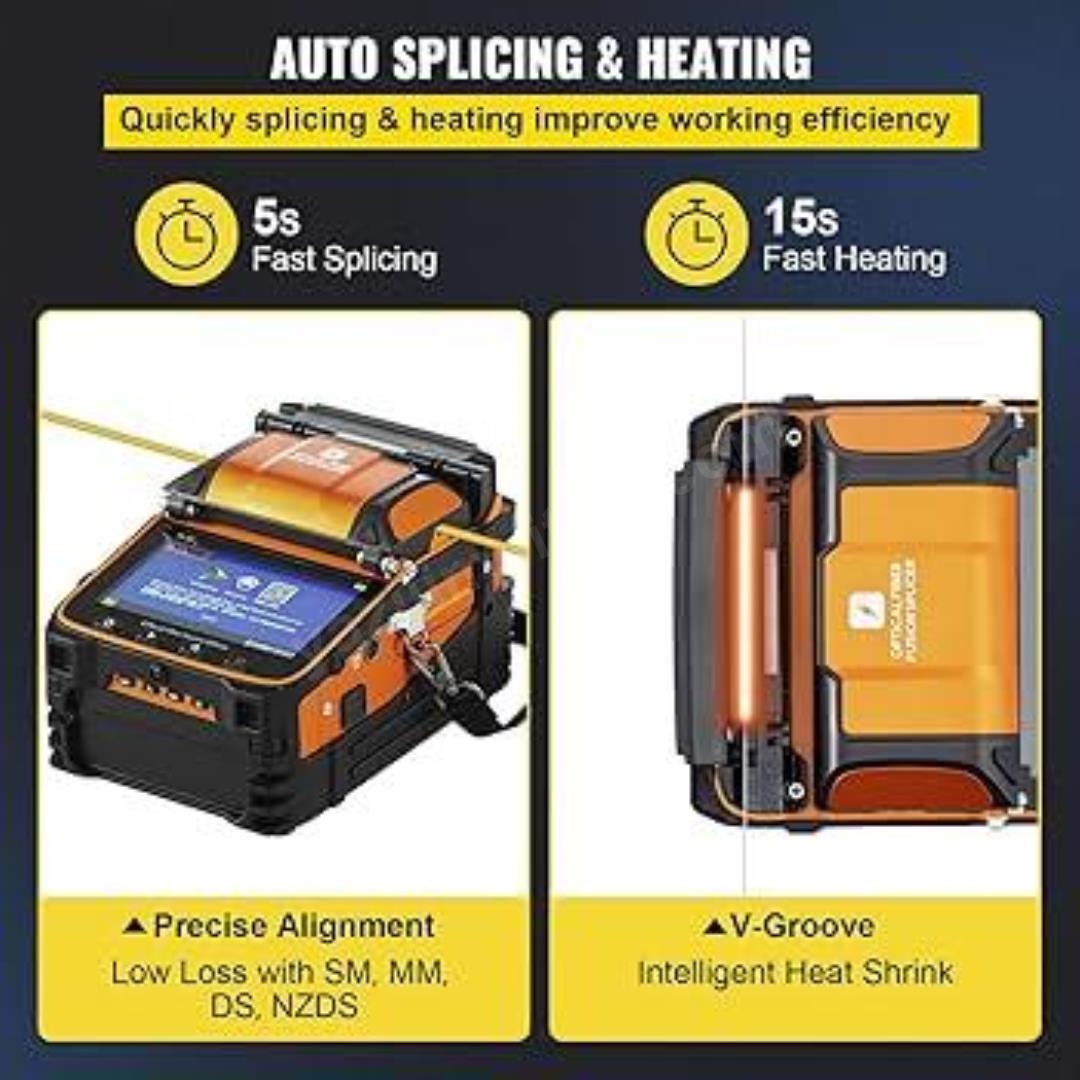

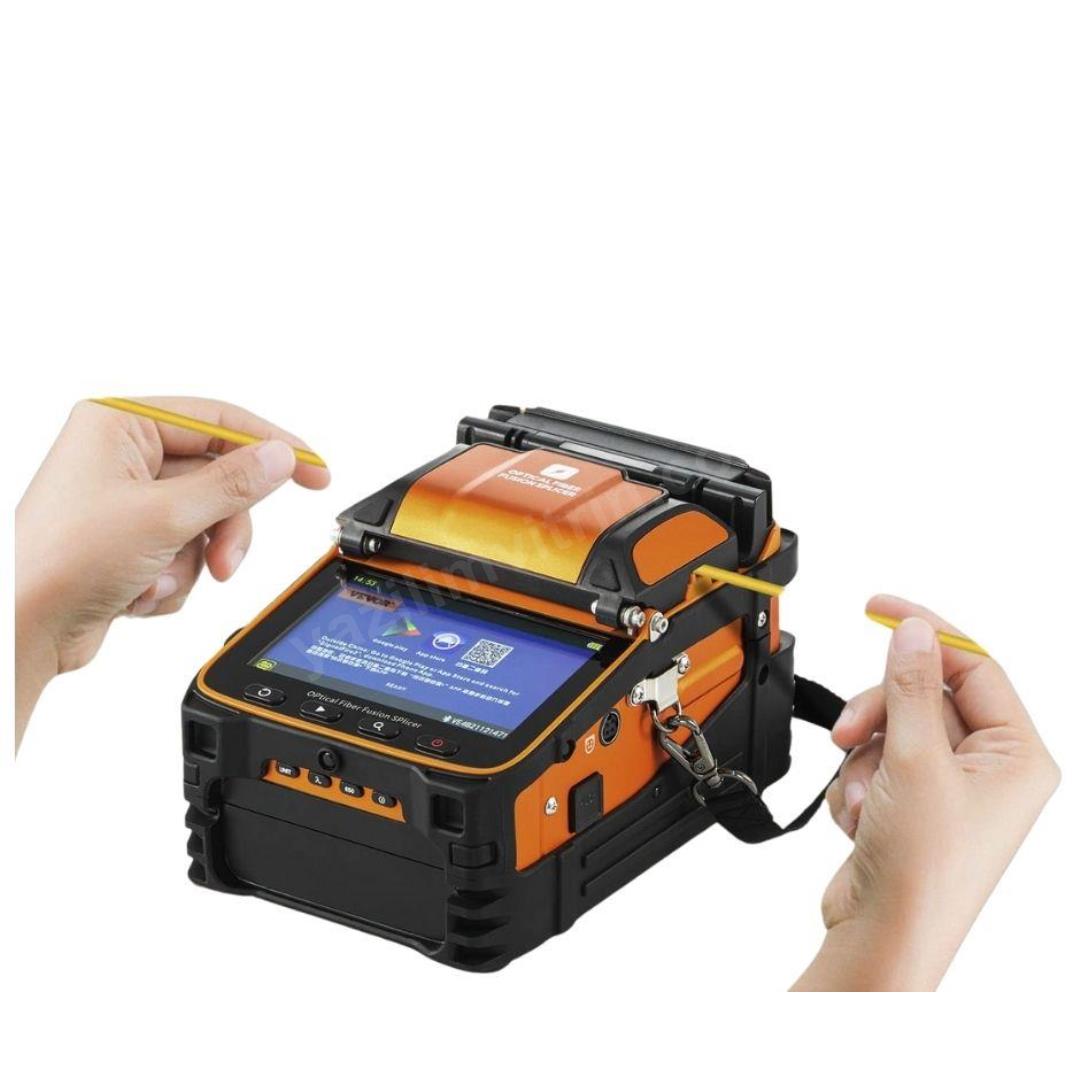

Fiber alignment Core/cladding Motor number 6 motors Optical fiber cutting Automatic cutting, welding machine has its own optical fiber cutting function Fiber into the slot Automatic slot, cut optical fiber automatically into the V slot Windproof cover open/close The windproof cover closes automatically before welding and opens automatically after weldingSplicing time 5s Heating mode 15s, can be customized according to the external environment Fiber type Single-mode fiber (SMF/G.652), BIF/G.657); Suitable for single mode, multi-mode, bare fiber, tail fiber, skinfiber, jumper, invisible fiber fusion; The cladding diameter 80-150 μm Splicing loss 0.02dB(SM)、0.01dB(MM)0.04dB(DS/NZDS) Splicing mode Automatic focusing core alignment, conventional/high precision welding Splicing way Automatic, semi-automatic Fiber holder Three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/barefiber, tail fiber,jumper, leather cable VFL The machine comes with: power: 15mW, 2Hz flashing and steady on mode OPM Wavelength: 850nm; 1300nm, 1310nm, 1490nm, 1550nm, 1625nm/Measurement range: -70~+6dBmAbsolute error: <0.3dB (-50dbm ~+3dBm range) Battery capacity 7800mAh large capacity lithium battery charging time ≤3.5; It can continuously weld and heat about 260cores Magnification 300 (X or Y), 150 (X or Y) Fiber diameter Coating diameter: 80-150μm/Coating diameter: 100-1000μm Cutting length Coating layer 250μm below: 8-16mm/coating layer 250-1000μm: 16mm Heat shrink tube 60mm、50mm、40mm、25mm Tensile testing standard 2N display 5 inch TFT color display screen External lighting USB port can be connected with EXTERNAL LED light, convenient for night construction Ch a r g e m o b i l e device The USB port can charge mobile devices such as mobile phones Boot time 1s, boot can enter the working mode Data is stored Unlimited, machine storage 1000 groups, the excess part can be stored in the server, can export data. W i r e l e s s communication Based on bluetooth 4.2 protocol standard, the working band is 2.4GHz, the maximumtransmissionrangeis60m Software upgrade Mobile phone APP Internet update, enable Bluetooth synchronization upgrade machine softwareinterface USB2.0 (Type A) can be used to connect external LED lights and charge mobile devices Return loss Better than 60 db Product protection Waterproof, dustproof and fall proof Power supply Input AC100-240V 50/60Hz, output DC13.5V/10A, the current power mode can be identified, real-timemonitoring of the current battery level T h e w o r k environment Temperature: -15 ~ +50℃, humidity: < 95%RH (no condensation), working altitude: 0 ~ 5000m, maximumwind speed: ≤15m/s


Ürüne Ait Dosya ve Dökümanlar

Brosur

OTTO AI-9 Fiber Optik Füzyon Cihazı - Fiber Ek Cihazı Brosur pdf İndir
